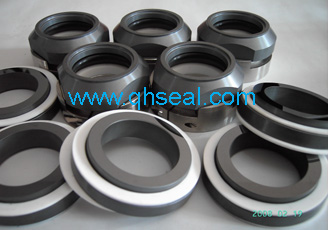

    SL16T/SL16L



                             Replace Latty B16660/B16000
    　 　 　 　 　 　 　 　
                             Main Characteristics:
                             Pressure: 1.6Mpa
                             Speed: 15m/s
                             Temperature: -400C 」 2200C
                             MATERIALS:
                             Seal Face: Carbon/SIC/TC
                             Stationary Ring: Ceramic/SIC/TC
                             Secondary Seals:NBR/EPDM/VITON
                             Spring & Other Parts: SS304/SS316

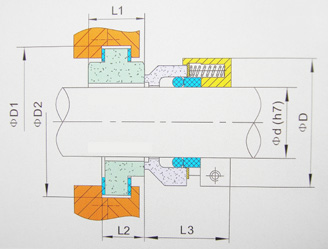

    Model
    d
    D
    D1
    L1
    L3
    SL16T-18
    18
    44
    48
    18
    38
    SL16T-20
    20
    46
    51
    18
    38
    SL16T-22
    22
    48
    51
    18
    38
    SL16T-24
    24
    50
    54
    18
    38
    SL16T-25
    25
    52
    54
    18
    38
    SL16T-28
    28
    55
    65
    27
    38
    SL16T-30
    30
    58
    68
    27
    38
    SL16T-32
    32
    60
    68
    27
    38
    SL16T-33
    33
    60
    71
    27
    38
    SL16T-35
    35
    62
    71
    27
    38
    SL16T-38
    38
    65
    78
    27
    38
    SL16T-40
    40
    68
    81
    27
    38
    SL16T-43
    43
    70
    84
    27
    38
    SL16T-45
    45
    72
    84
    27
    42
    SL16T-48
    48
    75
    97
    33
    42
    SL16T-50
    50
    78
    97
    33
    42
    SL16T-53
    53
    80
    100
    33
    42
    SL16T-55
    55
    80
    103
    33
    42
    SL16T-58
    58
    83
    106
    33
    42
    SL16T-60
    60
    86
    106
    33
    42
    SL16T-63
    63
    90
    110
    33
    42
    SL16T-65
    65
    93
    113
    33
    42
    SL16T-68
    68
    98
    116
    33
    42
    SL16T-70
    70
    98
    116
    33
    42
    SL16T-75
    75
    105
    121
    33
    42
    SL16T-80
    80
    109
    132
    33
    42
    SL16T-85
    85
    114
    138
    33
    42
    SL16T-90
    90
    120
    144
    33
    42
    SL16T-95
    95
    125
    144
    33
    42
    SL16T-100
    100
    130
    151
    33
    42

    Model
    d
    D
    D1
    D2
    L1
    L2
    L3
    SL16L-15/16"
    23.8
    50
    54
    51.5
    17.6
    17.4
    38.2
    SL16L-1"
    25.4
    52
    54
    55.5
    17.6
    17.4
    38.2
    SL16L-1 1/8"
    28.6
    55
    65
    58.5
    27
    17.4
    38.2
    SL16L-1 1/4"
    31.8
    60
    68
    61.5
    27
    17.4
    38.2
    SL16L-1 3/8"
    34.9
    62
    71
    63.5
    27
    17.4
    38.2
    SL16L-1 1/2"
    38.1
    65
    78
    71.5
    27
    17.4
    38.2
    SL16L-1 5/8"
    41.3
    68
    81
    74.5
    27
    17.4
    38.2
    SL16L-1 3/4"
    44.5
    72
    84
    81
    27
    17.4
    38.2
    SL16L-1 7/8"
    47.6
    75
    87
    84
    27
    17.4
    42.2
    SL16L-2"
    50.8
    78
    97
    90.5
    33.3
    17.4
    42.2
    SL16L-2 1/8"
    54
    80
    100
    97
    33.3
    17.4
    42.2
    SL16L-2 1/4"
    57.2
    83
    103
    100
    33.3
    17.4
    42.2
    SL16L-2 3/8"
    60.3
    86
    106
    101
    33.3
    17.4
    42.2
    SL16L-2 1/2"
    63.5
    90
    110
    106
    33.3
    17.4
    42.2
    SL16L-2 5/8"
    66.7
    98
    113
    110
    33.3
    17.4
    42.2
    SL16L-2 3/4"
    69.9
    98
    116
    116
    33.3
    17.4
    42.2
    SL16L-2 7/8"
    73
    105
    117
    119
    33.3
    17.4
    42.2
    SL16L-3"
    76.2
    105
    121
    124
    33.3
    17.4
    42, ., 2
    SL16L-3 1/8"
    79.4
    109
    129
    133
    33.3
    17.4
    42.2
    SL16L-3 1/4"
    82.6
    109
    132
    124
    33.3
    17.4
    42.2
    SL16L-3 3/8"
    85.7
    114
    135
    124
    33.3
    17.4
    42.2
    SL16L-3 1/2"
    88.9
    120
    138
    127
    33.3
    17.4
    42.2
    SL16L-3 5/8"
    92.1
    120
    141
    135
    33.3
    17.4
    42.2
    SL16L-3 3/4"
    95.3
    125
    144
    133
    33.3
    17.4
    42.2
    SL16L-4"
    102
    130
    151
    159
    33.3
    17.4
    42.2
