Replace SEALOL Type 527/528
Main Characteristics:
Pressure: 2.0Mpa
Speed: 30m/s
Temperature: -300C ∽ 2000C
MATERIALS:
Seal Face: SIC/TC
Stationary Ring: Carbon/SIC/TC
Secondary Ring: Viton
Spring&Other Parts: SS304/SS316

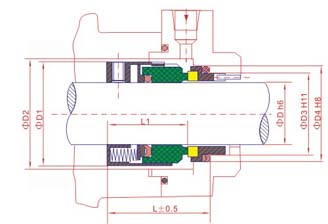

D	D1	D2	D3	D4	D	L1
18	32	34	27	33	36.3	21
20	34	36	29	35	38.3	21
22	36	38	31	37	40.3	21
24	38	40	33	39	42.3	24
25	39	41	34	40	43.3	24
28	42	44	37	43	46.3	24
30	44	46	39	45	48.3	25
32	46	48	42	48	51.6	25
33	47	49	42	48	51.3	25
35	49	51	44	50	53.3	25
38	54	58	49	56	60.3	28
40	56	60	51	58	62.3	28
43	59	63	54	61	65.3	28
45	61	65	56	63	67.3	28
48	64	69	59	66	70.5	28
50	66	70	62	70	74.4	28
53	69	73	65	73	77.4	28
55	71	75	67	75	79.4	28
60	80	85	72	80	85	29
65	85	89	77	85	89.8	32
70	90	95	83	92	97.1	32.7
75	99	104	88	97	102.5	32.7
80	104	109	95	105	110.9	36.3
85	109	114	100	110	115.9	36.3
90	114	119	105	115	120.9	39.3
95	119	125	110	120	126.1	39.3
100	124	129	115	125	130.9	39.3
