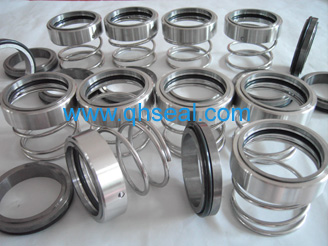

| SA3/SA3D |
| Replace AES T03/T03 DIN |
| |
|
|
|
|
|
|
|
| Main Characteristics: |
| Pressure: 1.0Mpa |
| Speed: 20m/s |
| Temperature: -400C 」 2000C |
|
| MATERIALS: |
| Seal Face: SS316/SS304/SIC/TC |
| Stationary Ring: Carbon/SIC/TC |
| Secondary Seal: NBR/EPDM/VITON |
| Spring&Other Parts: SS304/SS316 |
|
Model |
d |
d3 |
d7 |
l1 |
l4 |
|
SA3-10 |
0.394 |
19.0 |
18.1 |
15.0 |
5.5 |
|
SA3-11 |
0.433 |
20.0 |
20.6 |
18.0 |
5.5 |
|
SA3-12 |
0.472 |
21.0 |
20.6 |
18.0 |
5.5 |
|
SA3-13 |
0.512 |
23.0 |
23.1 |
22.0 |
6.0 |
|
SA3-14 |
0.551 |
23.0 |
23.1 |
22.0 |
6.0 |
|
SA3-15 |
0.591 |
24.0 |
26.9 |
22.0 |
7.0 |
|
SA3-16 |
0.630 |
26.0 |
26.9 |
23.0 |
7.0 |
|
SA3-17 |
0.669 |
26.0 |
26.9 |
23.0 |
7.0 |
|
SA3-18 |
0.709 |
29.0 |
30.9 |
24.0 |
8.0 |
|
SA3-19 |
0.748 |
31.0 |
30.9 |
25.0 |
8.0 |
|
SA3-20 |
0.787 |
31.0 |
30.9 |
25.0 |
8.0 |
|
SA3-21 |
0.827 |
33.0 |
35.4 |
25.0 |
8.0 |
|
SA3-22 |
0.866 |
33.0 |
35.4 |
25.0 |
8.0 |
|
SA3-23 |
0.906 |
35.0 |
35.4 |
27.0 |
8.0 |
|
SA3-24 |
0.945 |
35.0 |
35.4 |
27.0 |
8.0 |
|
SA3-25 |
0.984 |
36.0 |
38.2 |
27.0 |
8.5 |
|
SA3-26 |
1.024 |
36.0 |
38.2 |
27.0 |
8.5 |
|
SA3-28 |
1.102 |
40.0 |
43.3 |
29.0 |
9.0 |
|
SA3-30 |
1.181 |
43.0 |
43.3 |
30.0 |
9.0 |
|
SA3-32 |
1.260 |
46.0 |
43.3 |
30.0 |
9.0 |
|
SA3-33 |
1.299 |
46.0 |
53.5 |
39.0 |
11.5 |
|
SA3-34 |
1.339 |
49.0 |
53.5 |
39.0 |
11.5 |
|
SA3-35 |
1.378 |
49.0 |
53.5 |
39.0 |
11.5 |
|
SA3-36 |
1.417 |
49.0 |
53.5 |
39.0 |
11.5 |
|
SA3-38 |
1.496 |
53.0 |
60.5 |
39.0 |
11.5 |
|
SA3-40 |
1.575 |
56.0 |
60.5 |
39.0 |
11.5 |
|
SA3-42 |
1.654 |
59.0 |
60.5 |
39.0 |
11.5 |
|
SA3-43 |
1.693 |
59.0 |
60.5 |
39.0 |
11.5 |
|
SA3-44 |
1.732 |
61.0 |
65.5 |
41.0 |
11.5 |
|
SA3-45 |
1.772 |
61.0 |
65.5 |
41.0 |
11.5 |
|
SA3-48 |
1.890 |
64.0 |
65.5 |
41.0 |
11.5 |
|
SA3-50 |
1.969 |
66.0 |
72.5 |
45.0 |
11.5 |
|
SA3-55 |
2.165 |
71.0 |
72.5 |
47.0 |
11.5 |
|
SA3-60 |
2.362 |
78.0 |
79.3 |
49.0 |
11.5 |
|
SA3-65 |
2.559 |
84.0 |
84.5 |
51.0 |
11.5 |
|
SA3-70 |
2.756 |
89.7 |
89.5 |
51.0 |
11.5 |
|
SA3-75 |
2.953 |
98.0 |
94.5 |
57.0 |
11.5 |
|
SA3-80 |
3.150 |
100.0 |
99.5 |
59.0 |
11.5 |
|
SA3-85 |
3.346 |
107.0 |
105.5 |
59.0 |
13.5 |
|
SA3-90 |
3.543 |
111.0 |
111.5 |
62.0 |
13.5 |
|
SA3-95 |
3.740 |
119.0 |
116.5 |
62.0 |
13.5 |
|
SA3-100 |
3.937 |
124.0 |
119.5 |
75.0 |
13.5 |
|
Model |
d3 |
d7 |
l1 |
l4 |
|
SA3D-10 |
19.0 |
21.0 |
15.0 |
7.0 |
|
SA3D-12 |
20.0 |
23.0 |
18.0 |
7.0 |
|
SA3D-14 |
23.0 |
25.0 |
22.0 |
7.0 |
|
SA3D-16 |
26.0 |
27.0 |
23.0 |
7.0 |
|
SA3D-18 |
29.0 |
33.0 |
24.0 |
10.0 |
|
SA3D-20 |
31.0 |
35.0 |
25.0 |
10.0 |
|
SA3D-22 |
33.0 |
37.0 |
25.0 |
10.0 |
|
SA3D-24 |
35.0 |
39.0 |
27.0 |
10.0 |
|
SA3D-25 |
36.0 |
40.0 |
27.0 |
10.0 |
|
SA3D-28 |
40.0 |
43.0 |
29.0 |
10.0 |
|
SA3D-30 |
43.0 |
45.0 |
30.0 |
10.0 |
|
SA3D-32 |
46.0 |
48.0 |
30.0 |
10.0 |
|
SA3D-33 |
46.0 |
48.0 |
39.0 |
10.0 |
|
SA3D-35 |
49.0 |
50.0 |
39.0 |
10.0 |
|
SA3D-38 |
53.0 |
56.0 |
42.0 |
13.0 |
|
SA3D-40 |
56.0 |
58.0 |
42.0 |
13.0 |
|
SA3D-43 |
59.0 |
61.0 |
47.0 |
13.0 |
|
SA3D-45 |
61.0 |
63.0 |
47.0 |
13.0 |
|
SA3D-48 |
64.0 |
66.0 |
47.0 |
13.0 |
|
SA3D-50 |
66.0 |
70.0 |
46.0 |
14.0 |
|
SA3D-53 |
69.0 |
73.0 |
56.0 |
14.0 |
|
SA3D-55 |
71.0 |
75.0 |
56.0 |
14.0 |
|
SA3D-58 |
76.0 |
78.0 |
56.0 |
14.0 |
|
SA3D-60 |
78.0 |
80.0 |
56.0 |
14.0 |
|
SA3D-63 |
81.0 |
83.0 |
56.0 |
14.0 |
|
SA3D-65 |
84.0 |
85.0 |
66.0 |
14.0 |
|
SA3D-68 |
87.0 |
90.0 |
64.0 |
16.0 |
|
SA3D-70 |
89.0 |
92.0 |
64.0 |
16.0 |
|
SA3D-75 |
98.0 |
97.0 |
64.0 |
16.0 |
|
SA3D-80 |
100.0 |
105.0 |
72.0 |
18.0 |
|
SA3D-85 |
107.5 |
110.0 |
72.0 |
18.0 |
|
SA3D-90 |
111.0 |
115.0 |
72.0 |
18.0 |
|
SA3D-95 |
119.0 |
120.0 |
72.0 |
18.0 |
|
SA3D-100 |
123.8 |
125.0 |
72.0 |
18.0 |
|
|
