Replace Burgamann  HJ92N/HJ977GN
Main Characteristics:
Pressure: 2.4Mpa
Speed: 20m/s
Temperature: -400C ∽ 2050C
MATERIALS:
Seal Face: Carbon/SIC/TC
Stationary Ring: Ceramic/SIC/TC
Secondary Seals:NBR/EPDM/VITON
Spring & Other Parts: SS304/SS316

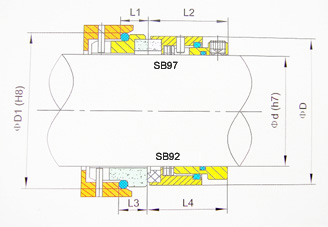

Model	d	D	D1	L1	L2	L3	L4
SB92/SB97-18	18	32	33	9	28.7	7	30.7
SB92/SB97-20	20	34	35	9	28.7	7	30.7
SB92/SB97-22	22	36	37	9	28.7	7	30.7
SB92/SB97-24	24	38	39	9	31.2	7	33.2
SB92/SB97-25	25	39	40	9	31.2	7	33.2
SB92/SB97-28	28	42	43	9.5	33.2	7	35.7
SB92/SB97-30	30	44	45	9.5	33.2	7	35.7
SB92/SB97-32	32	47	48	9.5	33.2	7	35.7
SB92/SB97-33	33	47	48	9.5	33.2	7	35.7
SB92/SB97-35	35	49	50	9.5	33.2	7	35.7
SB92/SB97-38	38	54	56	10.5	34.7	8	37.2
SB92/SB97-40	40	56	58	10.5	34.7	8	37.2
SB92/SB97-43	43	59	61	10.5	34.7	8	37.2
SB92/SB97-45	45	61	63	10.5	34.7	8	37.2
SB92/SB97-48	48	64	66	10.5	34.7	8	37.2
SB92/SB97-50	50	66	70	12	35.7	9.5	38.2
SB92/SB97-53	53	69	73	12	35.7	9.5	38.2
SB92/SB97-55	55	71	75	12	35.7	9.5	38.2
SB92/SB97-58	58	78	78	13	39.7	10.5	42.2
SB92/SB97-60	60	80	80	13	39.7	10.5	42.2
SB92/SB97-63	63	83	83	13	39.7	10.5	42.2
SB92/SB97-65	65	85	85	13	39.7	10.5	42.2
SB92/SB97-68	68	88	90	13.5	39.2	11	41.7
SB92/SB97-70	70	90	92	14	46.2	11.5	48.7
SB92/SB97-75	75	99	97	14	46.2	11.5	48.7
SB92/SB97-80	80	104	105	14	46.2	11.5	48.7
SB92/SB97-85	85	109	110	14	46.2	11.5	48.7
SB92/SB97-90	90	114	115	15.5	49.7	13	52.2
SB92/SB97-95	95	119	120	15.5	49.7	13	52.2
SB92/SB97-100	100	124	125	15.5	49.7	13	52.2
