| MB9(Inch) |
| Replace Johncrane 676 |
| |
|
|
|
|
|
|
|
| Main Characteristics: |
| Pressure: 2Mpa |
| Speed: <25m/s |
| Temperature: -750C 」 2000C |
|
| MATERIALS: |
| Seal Face: Carbon/SIC/TC |
| Stationary Ring: SIC/TC |
| Secondary Seals:NBR/PTFE/VITON/PTFE encapsulated Viton |
| Metal Bellow: SUS316/AM350/Hastelloy-C/Alloy 20/AM350 /Titanium |
| Other Parts: SS304/SS316/Hastelloy-C/Titanium/Alloy 20 |
|

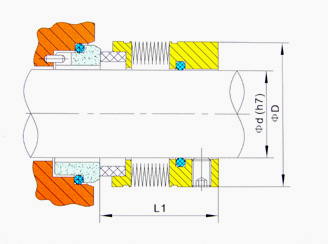

Model |
d |
D |
L1 |
|
MB9-3/4" |
0.75 |
1.312 |
1.25 |
|
MB9-7/8" |
0.875 |
1.437 |
1.25 |
|
MB9-0.937 |
0.937 |
1.5 |
1.25 |
|
MB9-1" |
1 |
1.562 |
1.25 |
|
MB9-1 1/8" |
1.125 |
1.687 |
1.25 |
|
MB9-1 1/4" |
1.25 |
1.812 |
1.312 |
|
MB9-1 3/8" |
1.375 |
1.937 |
1.437 |
|
MB9-1 1/2" |
1.5 |
2.062 |
1.437 |
|
MB9-1 5/8" |
1.625 |
2.187 |
1.437 |
|
MB9-1 3/4" |
1.75 |
2.312 |
1.437 |
|
MB9-1 7/8" |
1.875 |
2.437 |
1.5 |
|
MB9-2" |
2 |
2.562 |
1.5 |
|
MB9-2 1/8" |
2.125 |
2.687 |
1.5 |
|
MB9-2 1/4" |
2.25 |
2.812 |
1.562 |
|
MB9-2 3/8" |
2.375 |
2.937 |
1.562 |
|
MB9-2 1/2" |
2.5 |
3.187 |
1.562 |
|
MB9-2 5/8" |
2.625 |
3.312 |
1.625 |
|
MB9-2 3/4" |
2.75 |
3.437 |
1.625 |
|
MB9-2 7/8" |
2.875 |
3.625 |
1.687 |
|
MB9-3" |
3 |
3.75 |
1.687 |
|
MB9-3 1/8" |
3.125 |
3.875 |
1.75 |
|
MB9-3 1/4" |
3.25 |
4 |
1.75 |
|
MB9-3 3/8" |
3.375 |
4.125 |
1.75 |
|
MB9-3 1/2" |
3.5 |
4.25 |
1.875 |
|
MB9-3 5/8" |
3.625 |
4.375 |
1.875 |
|
MB9-3 3/4" |
3.75 |
4.5 |
1.875 |
|
MB9-3 7/8" |
3.875 |
4.625 |
1.875 |
|
MB9-4" |
4 |
4.75 |
1.875 |
|
MB9-4 1/4" |
4.25 |
5.187 |
1.903 |
|
MB9-4 1/2" |
4.5 |
5.437 |
1.903 |
|
MB9-4 3/4" |
4.75 |
5.687 |
1.903 |
|
MB9-5" |
5 |
5.937 |
1.903 |
|
MB9-5 1/4" |
5.25 |
6.213 |
1.903 |
|
MB9-5 1/2" |
5.5 |
6.463 |
1.903 |
|
MB9-5 3/4" |
5.75 |
6.714 |
1.903 |
|
MB9-6" |
6 |
6.964 |
1.903 |
|
|
