Replace Burgmann MFL WT 80
Main Characteristics:
Pressure: 20Mpa/
Speed: 23m/s
Temperature: -200C ∽ 3800C
MATERIALS:
Seal Face: Carbon/SIC/TC
Stationary Ring: SIC/TC
Secondary Ring: Flexible Graphite
Metal Bellow: AM350/Lnconel1718
Metal Parts: SS304/SS316

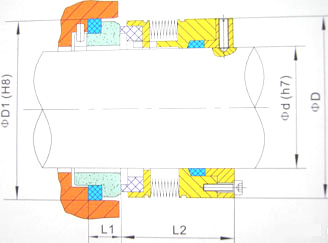

Model	d	D	D1	L1	L2
MB4-16	16	38	35	11.5	46.7
MB4-18	18	40	37	11.5	46.7
MB4-20	20	42	40	11.5	46.7
MB4-22	22	44	43	11.5	46.7
MB4-24	24	46	43	11.5	46.7
MB4-25	25	47	45	11.5	46.7
MB4-28	28	50	48	11.5	46.7
MB4-30	30	52	50	11.5	46.7
MB4-32	32	54	56	14	46.7
MB4-33	33	55	56	14	46.7
MB4-35	35	57	58	14	46.7
MB4-38	38	60	61	14	46.7
MB4-40	40	66	63	14	47.7
MB4-43	43	69	66	14	47.7
MB4-45	45	71	70	15	47.7
MB4-48	48	74	73	15	47.7
MB4-50	50	76	75	15	47.7
MB4-53	53	79	78	15	47.7
MB4-55	55	81	80	15	47.7
MB4-58	58	85	83	15	53.2
MB4-60	60	87	85	15	53.2
MB4-63	63	90	90	18	53.2
MB4-65	65	92	92	18	53.2
MB4-68	68	95	97	18	53.2
MB4-70	70	97	97	18	53.2
MB4-75	75	102	105	18.2	53
MB4-80	80	107	110	18.2	53
MB4-85	85	112	115	18.2	53
MB4-90	90	117	120	17.2	54
MB4-95	95	122	125	17.2	54
MB4-100	100	127	134.3	20	54.2
