Replace Burgamann MFL85N
Main Characteristics:
Pressure: 2.0Mpa
Speed: 23m/s
Temperature: -200C ∽ 2000C
MATERIALS:
Seal Face: Carbon/SIC
Stationary Ring: SIC/TC
Secondary Ring: NBR/EPDM/VITON
Bellow: AM-350 / Lncone1718
Metal Part: SS304/SS316

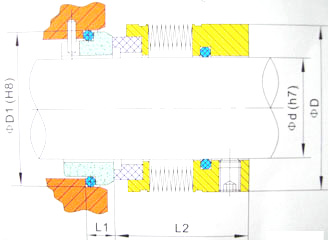

Model	d	D	D1	L1	L2
MB2-16	16	30	27	10	32.7
MB2-18	18	32	33	7	30.7
MB2-20	20	33.5	35	7	30.7
MB2-22	22	36.5	37	7	30.7
MB2-24	24	39	39	11.5	28.7
MB2-25	25	39.6	40	11.5	28.7
MB2-28	28	42.8	43	11.5	31.2
MB2-30	30	45	45	11.5	31.2
MB2-32	32	46	48	11.5	31.2
MB2-33	33	48	48	11.5	31.2
MB2-35	35	49.2	50	11.5	31.2
MB2-38	38	52.3	56	14	31.2
MB2-40	40	55.5	58	14	31.2
MB2-43	43	57.5	61	14	31.2
MB2-45	45	58.7	63	14	31.2
MB2-48	48	61.9	66	14	31.2
MB2-50	50	65	70	15	32.7
MB2-53	53	68.2	73	15	32.7
MB2-55	55	70	75	15	32.7
MB2-58	58	71.7	78	15	37.7
MB2-60	60	74.6	80	15	37.7
MB2-63	63	79	83	15	37.7
MB2-65	65	84.1	85	15	37.7
MB2-68	68	87.3	90	18	34.7
MB2-70	70	87.3	92	18	42.2
MB2-75	75	95	97	18	42.2
MB2-80	80	98.4	105	18.2	42
MB2-85	85	104.7	110	18.2	42
MB2-90	90	111	115	18.2	47
MB2-95	95	114	120	17.2	48
MB2-100	100	117.4	125	17.2	48
