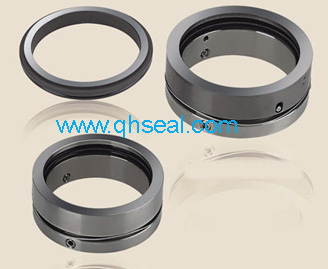

| SA4/SA5 |
| Replace AES W01/W02 |
| |
|
|
|
|
|
|
|
| Main Characteristics: |
| Pressure:＋ 0.8Mpa |
| Speed: ＋15m/s |
| Temperature: -200C 」 2000C |
|
| MATERIALS: |
| Seal Face: Carbon/SIC/TC |
| Stationary Ring: Carbon/SIC/TC |
| Secondary Seals: NBR/EPDM/VITON |
| Spring&Metal Parts: Steel |
|
Model |
d3 |
d7 |
l1 |
l4 |
|
SA4-5/8" |
27.0 |
28.5 |
19.1 |
6.3 |
|
SA4-16 |
27.0 |
28.5 |
19.1 |
6.3 |
|
SA4-3/4" |
30.0 |
31.7 |
19.1 |
6.3 |
|
SA4-24 |
34.1 |
35.4 |
19.1 |
7.6 |
|
SA4-28 |
40.0 |
42.0 |
19.1 |
7.6 |
|
SA4-1 1/8" |
39.5 |
41.2 |
19.1 |
7.6 |
|
SA4-30 |
41.0 |
42.7 |
19.1 |
7.6 |
|
SA4-1 1/4" |
42.4 |
44.2 |
19.1 |
7.6 |
|
SA4-32 |
42.4 |
44.4 |
19.1 |
7.6 |
|
SA4-35 |
45.5 |
47.6 |
19.1 |
7.6 |
|
SA4-38 |
51.8 |
53.9 |
21.1 |
8.1 |
|
SA4-1 3/4" |
58.2 |
60.3 |
21.1 |
8.1 |
|
SA4-1 7/8" |
61.4 |
63.5 |
21.1 |
8.1 |
|
SA4-50 |
61.9 |
63.9 |
21.1 |
8.1 |
|
SA4-2" |
64.6 |
66.6 |
22.1 |
9.6 |
|
SA4-2 1/8" |
71.0 |
73.0 |
22.1 |
9.6 |
|
SA4-54 |
71.0 |
73.9 |
22.1 |
9.6 |
|
SA4-2.15" |
72.0 |
75.0 |
22.1 |
9.6 |
|
SA4-55 |
72.0 |
75.0 |
22.1 |
9.6 |
|
SA4-63 |
79.3 |
83.0 |
25.8 |
9.1 |
|
SA4-2 1/2" |
79.3 |
88.9 |
25.8 |
9.1 |
|
SA4-2 3/4" |
88.9 |
95.2 |
25.8 |
9.1 |
|
SA4-73 |
94.0 |
98.4 |
25.8 |
9.1 |
|
SA4-75 |
96.0 |
100.4 |
25.8 |
9.1 |
|
Model |
d3 |
d7 |
d8 |
l1 |
l4 |
|
SA5-16 |
27.0 |
27.0 |
4.0 |
19.1 |
8.6 |
|
SA5-20 |
31.0 |
35.0 |
5.0 |
19.1 |
10.0 |
|
SA5-22 |
33.0 |
37.0 |
5.0 |
19.1 |
10.0 |
|
XA5-24 |
34.1 |
39.0 |
5.0 |
19.1 |
10.0 |
|
SA5-25 |
35.2 |
40.0 |
5.0 |
19.1 |
10.0 |
|
SA5-28 |
40.0 |
43.0 |
5.0 |
19.1 |
10.0 |
|
SA5-30 |
41.0 |
45.0 |
5.0 |
19.1 |
10.0 |
|
SA5-32 |
42.4 |
48.0 |
5.0 |
19.1 |
10.0 |
|
SA5-33 |
44.0 |
48.0 |
5.0 |
19.1 |
10.0 |
|
SA5-35 |
45.5 |
50.0 |
5.0 |
21.1 |
10.0 |
|
SA5-38 |
51.8 |
56.0 |
5.0 |
21.1 |
11.0 |
|
SA5-40 |
53.8 |
58.0 |
5.0 |
21.1 |
11.0 |
|
SA5-43 |
56.0 |
61.0 |
5.0 |
21.1 |
11.0 |
|
SA5-45 |
58.2 |
63.0 |
5.0 |
21.1 |
11.0 |
|
SA5-48 |
61.4 |
66.0 |
5.0 |
21.1 |
11.0 |
|
SA5-50 |
61.9 |
70.0 |
5.0 |
21.1 |
13.0 |
|
SA5-55 |
72.0 |
75.0 |
5.0 |
22.1 |
13.0 |
|
SA5-60 |
76.0 |
80.0 |
5.0 |
25.8 |
13.0 |
|
SA5-63 |
79.3 |
83.0 |
5.0 |
25.8 |
13.0 |
|
SA5-65 |
82.3 |
85.0 |
5.0 |
25.8 |
13.0 |
|
SA5-70 |
88.9 |
92.0 |
5.0 |
25.8 |
15.3 |
|
SA5-75 |
96.0 |
97.0 |
5.0 |
25.8 |
15.3 |
|
|
