Replace Sealol Type43; JohnCrane Type521
Main Characteristics:
Pressure: 1.0Mpa
Speed: 10m/s
Temperature: -300C ∽ 2000C
MATERIALS:
Seal Face: Carbon/SIC/TC
Stationary Ring: Ceramic/SIC/TC
Secondary Seals: NBR/VITON/EPDM
Spring&Other Parts:SS304/SS316

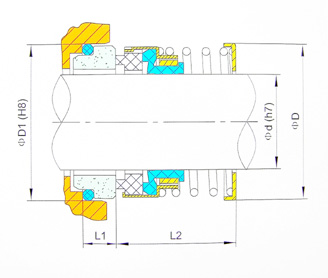

Model	d	D	D1	L1	L2
SJ43-10	10	20	21	8.5	24.1
SJ43-12	12	22	23	8.5	24.1
SJ43-14	14	24	25	8.5	26.7
SJ43-16	16	26	27	8.5	26.7
SJ43-18	18	32	33	10	27.7
SJ43-20	20	34	35	10	27.7
SJ43-22	22	36	37	10	27.7
SJ43-24	24	38	39	10	30.2
SJ43-25	25	39	40	10	30.2
SJ43-28	28	42	43	10	32.7
SJ43-30	30	44	45	10	32.7
SJ43-32	32	46	48	10	32.7
SJ43-33	33	47	48	10	32.7
SJ43-35	35	49	50	10	32.7
SJ43-38	38	54	56	11	34.2
SJ43-40	40	56	58	11	34.2
SJ43-43	43	59	61	11	34.2
SJ43-45	45	61	63	11	34.2
SJ43-48	48	64	66	11	34.2
SJ43-50	50	66	70	13	34.7
SJ43-53	53	69	73	13	34.7
SJ43-55	55	71	75	13	34.7
SJ43-58	58	78	78	13	39.7
SJ43-60	60	80	80	13	39.7
SJ43-63	63	83	83	13	39.7
SJ43-65	65	85	85	13	39.7
SJ43-68	68	88	90	15.3	37.4
SJ43-70	70	90	92	15.3	44.9
SJ43-75	75	99	97	15.3	44.9
SJ43-80	80	104	105	15.7	44.5
SJ43-85	85	108	110	15.7	44.5
SJ43-90	90	114	115	15.7	49.5
SJ43-95	95	119	120	15.7	49.5
SJ43-100	100	124	125	15.7	49.5
